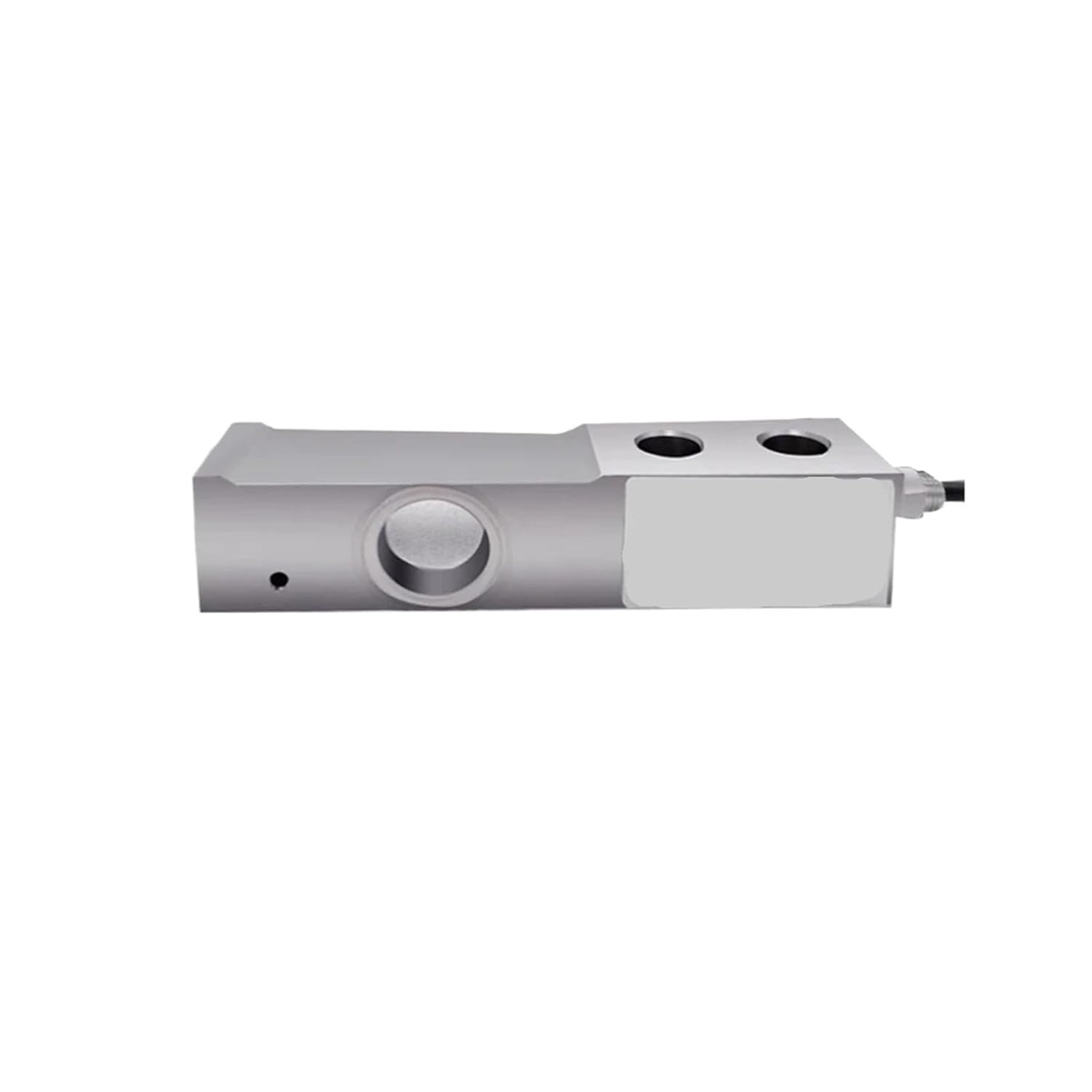

Threaded Beam Load Cells Solution for Floor Scales Weighing Platforms 250KG 500KG 1000KG 2000KG 3000KG 5000KG,for Impact Force Measurement Industrial Testing(3T)

Product Name:Threaded Beam Load Cells Solution For Floor Scales Weighing Platforms 250KG 500KG 1000KG 2000KG 3000KG 5000KGModel: HLJMaterial and Process: Stainless SteelFeatures: Single point sensor, compensated for corner deviationSpecifications: 250/500/1000/2000/3000/5000kgSuitable for weighing control of building material batching systems such as concrete mixing stations and powder scalesProduct ParametersRated capacity: 2505001000200030005000kgSensitivity output: 2.00 ± 0.002mV/VAccuracy level: C3Zero load output: ≤ 1.0% R.CComprehensive error: ≤ 0.018% R.CRepetitive error: ≤ 0.010% A.L (3)Creep. 30 minutes: ≤ 0.0167% A.L (3)Minimum static load output recovery value (DR). 30 minutes: ≤ 0.0167% A.LMinimum static load output affected by temperature: ≤ 0.0023% R.C./℃Temperature sensitivity (2): ≤ 0.0009% R.C./℃Temperature range compensation temperature: -10-+40 ℃Temperature range: -20-+65 ℃Temperature range for safe storage: -40-+80 ℃Recommended range of excitation voltage: 5-15VMaximum excitation voltage: 20VTerminal impedance output impedance: 382 ± 4 ΩTerminal impedance input impedance: 350 ± 1 ΩInsulation resistance: ≥ 5000M ΩMaterial: Stainless steelSafe overload: 150%% R.CExtreme overload: 300%% R.CCable length: 3.5mCable diameter: 5.6mmWeight: 1, 1.4, 2.4 kgThread size: M12, M14, M18 (Mm)Installation torque: 98275 (N.m)

• High Precision Load Cell: Our Threaded Beam Load Cells are designed for precise measurements, making them the solution for floor scales and weighing platforms with capacities ranging from 250KG to 5000KG
• Stainless Steel Construction: Engineered from stainless steel, these load cells ensure longevity and reliability in various environments, for applications in concrete mixing stations and powder scales
• Exceptional Accuracy and Sensitivity: Featuring a sensitivity output of 2.00 ± 0.002mV/V and an accuracy level of C3, our load cells guarantee minimal comprehensive error (≤ 0.018% R.C) and repetitive error (≤ 0.010% A.L), ensuring trustworthy performance
• Wide Temperature Range: These load cells operate effectively in temperature ranges from -20 to +65 ℃, with temperature compensation from -10 to +40 ℃, making them suitable for diverse industrial
• User-Friendly Installation: With a cable length of 3.5m and various thread sizes (M12, M14, M18), installation is straightforward. The load cells come equipped with a secure installation torque of 98-275 N.m, ensuring stable performance under heavy loads
